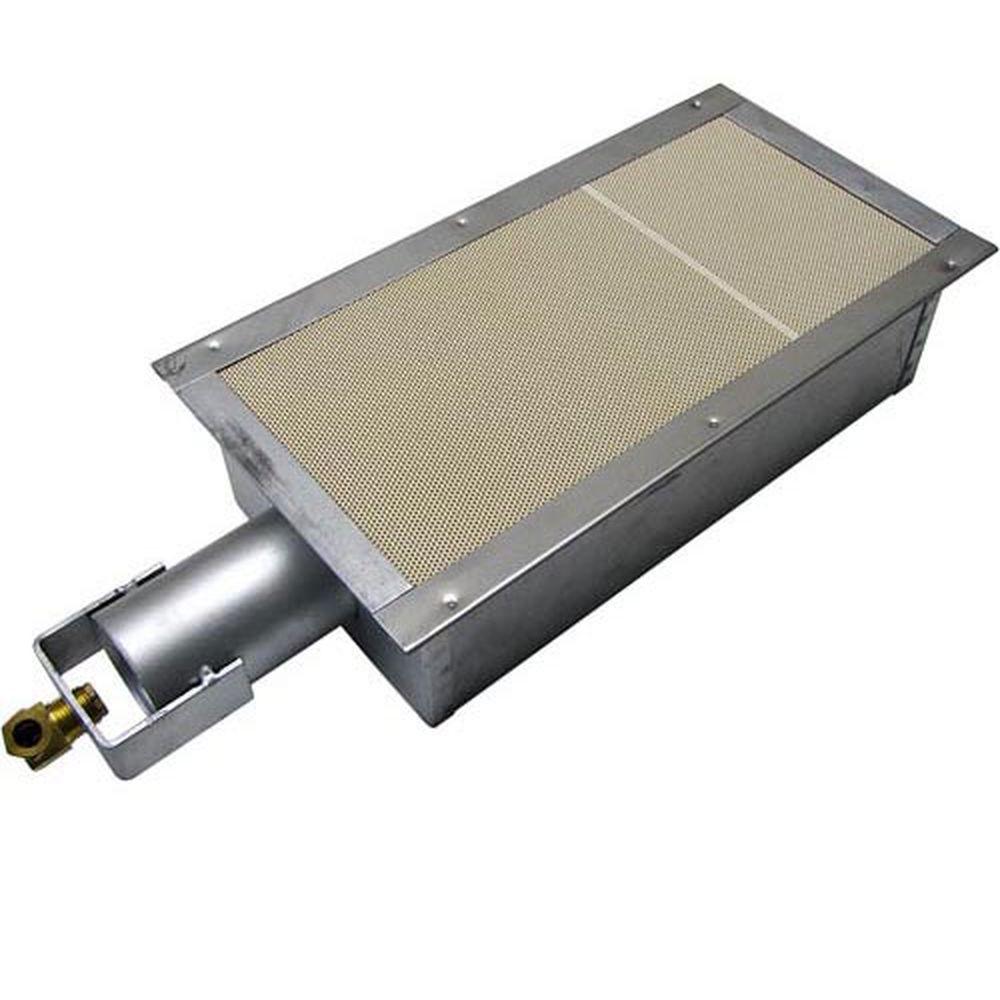

Infra-red Broiler Burner; top Of Box, 12-3/4" X 7" Od, Weight 5.6 Lbs.; ceramic Area 11-1/4" X 5-1/8"; bottom Of Box 11-11/16" X 5-3/4" X 3-3/8"h; venturi 2.122" Dia Od X 2-5/16"l, W/ Bracket 4-3/16"l; orifice #48 X 3/8" Cct; total Length W/o Orifice 16-1/2"; a

Infra-red broiler burner top of box, 12-3/4" x 7" od, weight 5.6 lbs. ceramic area 11-1/4" x 5-1/8" bottom of box 11-11/16" x 5-3/4" x 3-3/8"h venturi 2.122" dia od x 2-5/16"l, w/ bracket 4-3/16"l orifice #48 x 3/8" cct total length w/o orifice 16-1/2" american range broiler arcm cheesemelter, avb vertical broiler. ***verify the size of the burner the customer is ordering - american range has conflicting information on their ir burners. may need part number 263692***

Fits Model American Range: ARSB

Fits Model Royal Range: RSB-36

Replaces Part Number AMERICAN RANGE: 10477, A14015

Replaces Part Number ROYAL RANGE: 1603
